    LS10SP



    ApplicationsFeature
    Touring performanceExtremely compact , Small enclosure, light weight

    Club, multi-function hall

    Precise realization of multiple applications of hanging, stacking and supporting with LS10.

    Church

    		Combined with the LS10 and 18-inch subwoofer, it can be combined into a medium-to-large line array system.



    Technical parameters

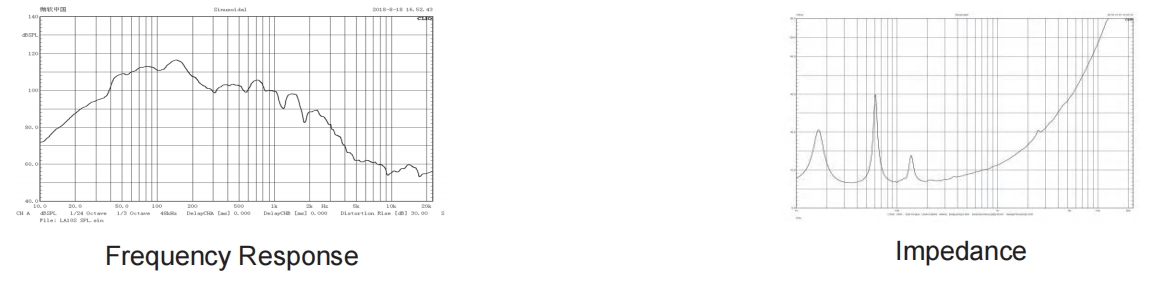

    Frequency response40Hz ~ 150Hz(士3dB )
    Nominal directivity(-6dB)Omnidirectional

    Maximum SPL

    		125dB/135dB SPL
    Power Requiremen200-240V ~ 50-60Hz
    Sensitivity(@1w/1m)131dB SPL
    Impedance8 ohm
    TransducersLF:1x15" All Condition Woofer
    SNR104dB
    Output electric circuit
    		Class D circult
    Power Rating2000W @4Ω


    Physical data

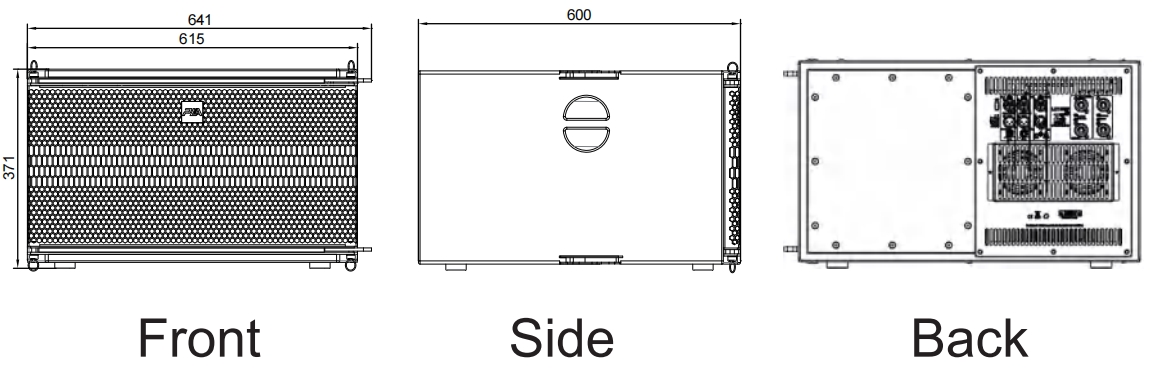

    Dimensions641x600x371mm
    Weight37Kg
    Connectors

    USB+XLR+PowerCON+NEUTRIK NL4

    Speaker Cables

    1+1-


    MaterialsThe box body is made of birch boards with environmentally friendly PUA polyurea waterproof and anti-corrosion coating on the surface.
    FinshBlack Polyurea paintings
    Grille

    DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.

    Angles

    0、-5° adjustabl
