    CL18P



    ApplicationsFeature
    Conference systemBuilt-in Power Rating Amplifier and high quality DSPModule.
    Medium size performanceMatched with the CL5 Speacker 18 "Subwoofer

    Direct-discharge compact subwoofer,Low frequency extend to 35Hz(-10db)

    Configuration of WPE wavepath equidistant acoustic guide




    Maximum SPLTransducersPower RatingTHD+N

    Technical parameters

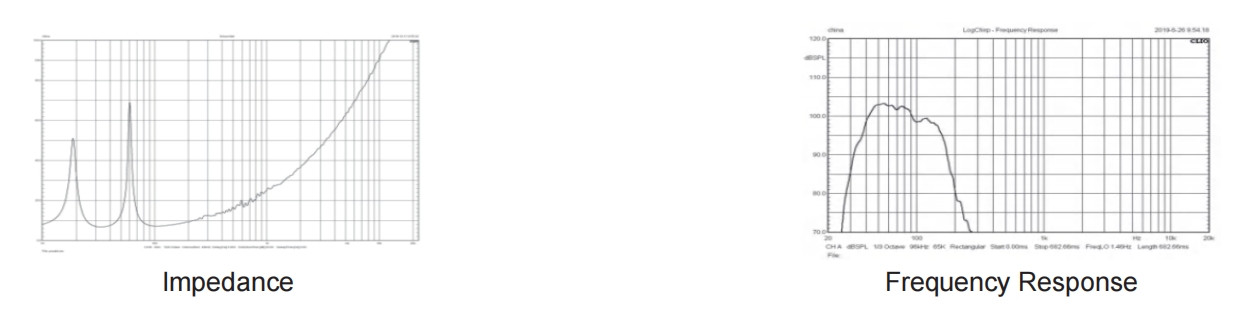

    Frequency response

    40Hz~120Hz(±3dB)；35Hz~180Hz(-10dB)

    Nominal Coverage(-6dB)

    Omnidirectional


    128dB/138dB SPL peak

    LF:1x18" All Condition Woofer

    Power requirement

    200-240V ~ 50-60Hz


    Dual channel 2000W/4



    0.82%(1kHz,Power Rating4Ω)

    Power rating

    SNR

    Cooling method

    Speaker Cables

    Connectors

    1500W

    104dB

    Airflow from back to front, Forced cooling

    Class D circult

    USB+RJ45+XLR+powerCON+SpeakON




    Materia

    Physical data

    Dimensions526x596x526mm
    Weight42kg
    Imported multi-plywood Environmental waterproof and anti corrosion coatings
    FinshBlack Polyurea paintings
    Grille

    DPR(Double Perforation Rate )technology design, in which 526theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
