Theater

multipurpose hall

Church,Karaoke

Front Zone and Delayed Fill-in

1. Excellent vocal performance

2. 3"Phase Correction HF compression driver

3. Low frequency response extend to 40Hz

4. With CPS (Coaxial Point Source) technology

Technical parameters

Frequency response:

Nominal directivity (-6dB):

Sensitivity (@ 1W/1m):

Power Rating:

Impedance:

Maximum SPL:

Transducers:

50Hz~18kHz(±3dB)，40Hz~20kHz(-10dB)

80°(cone)

102dB SPL

450W

8 ohm

125dB/135dB SPL peak

LF:1x15" All Condition Woofer

HF:1x3"Phase Correction HF compression driver

Power Input

Connector:

Speaker Cables:

NEUTRIK NL4MP*2

1+1-

Appearance

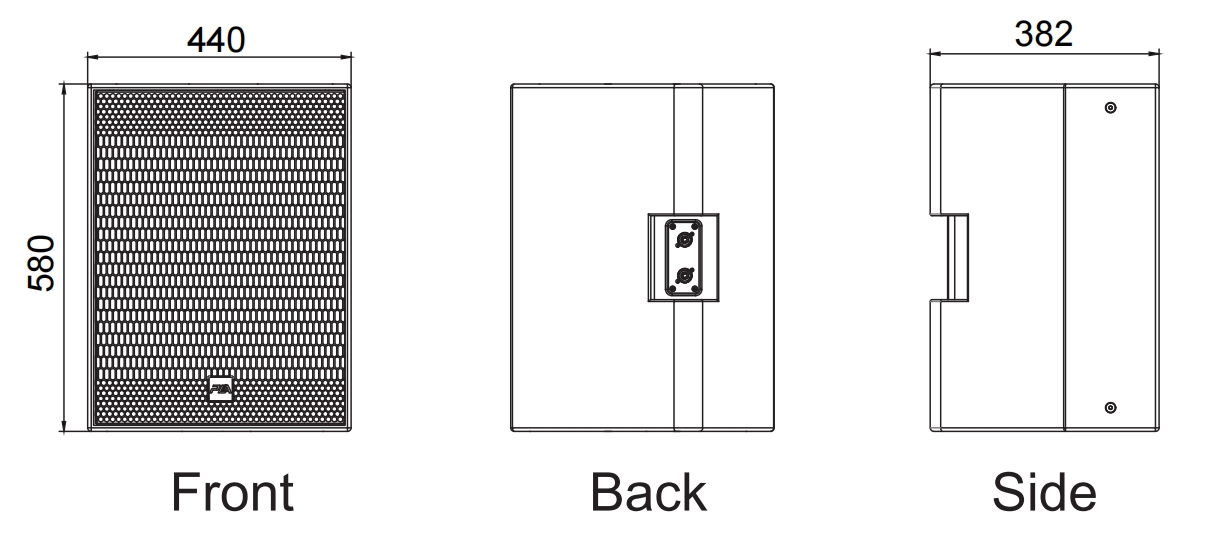

Dimensions:

Weight:

Material:

Finish:

Nstallati on:

Grille:

440x382x580mm

21.5kg

Imported multi-plywood Environmental waterproof and anti-corrosion coatings

Black Polyurea paintings

Pole socket and for multiple flying points

DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
