Bar

Rotatable and asymmetrical hornBar、Theatre、Stage Monitor

Theatre

13x M8 rigging points

Stage Monitor

With PCT(Phase Coherent Technology) technology

Pole mount socket

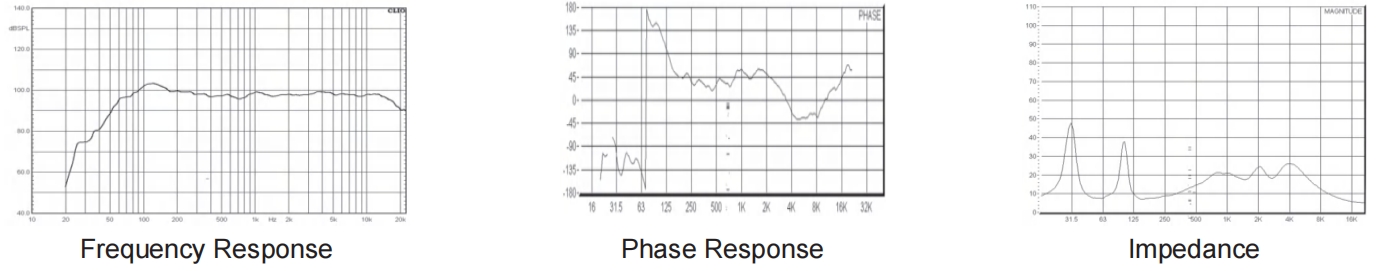

Frequency Respond

60 Hz ~ 18 kHz(±3 dB) ;  45 Hz ~ 20 kHz(-10 dB)

Nominal directivity(-6dB)

100°（H）；55°(V) Constant Directional

Sensitivity(@1w/1m)

98 dB SPL

Power Rating

450 W

Impedance

8 ohm

Maximum SPL

124dB/134dB SPL peak

Transducers

LF:1x15" All Condition Woofer

HF:1x1.75"Phase Correction HF compression driver

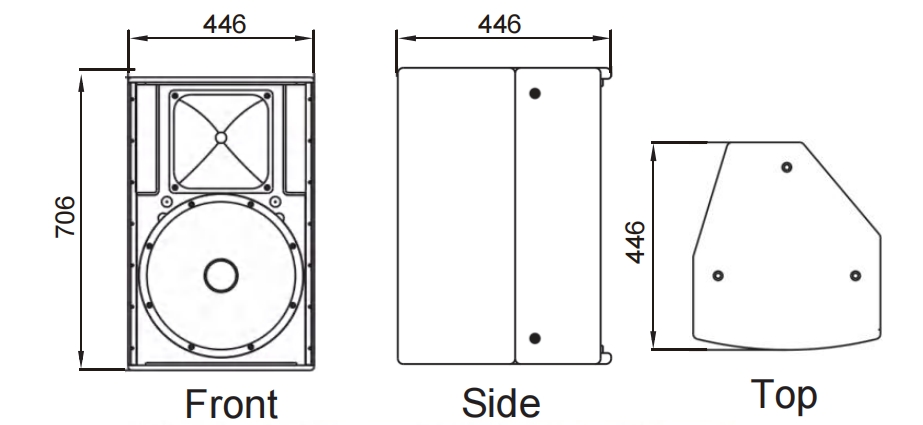

Dimension

446x446x706mm

Weight

31Kg

Speaker Cables

1+1-

Connectors

NEUTRIK NL4MP*2

Material

Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings

Finish

Black Polyurea paintings

Cover

Black epoxy mesh grille with acoustically reticulated cloth

Grille

DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
