    PRODUCTS

     Home / Products / Detailed

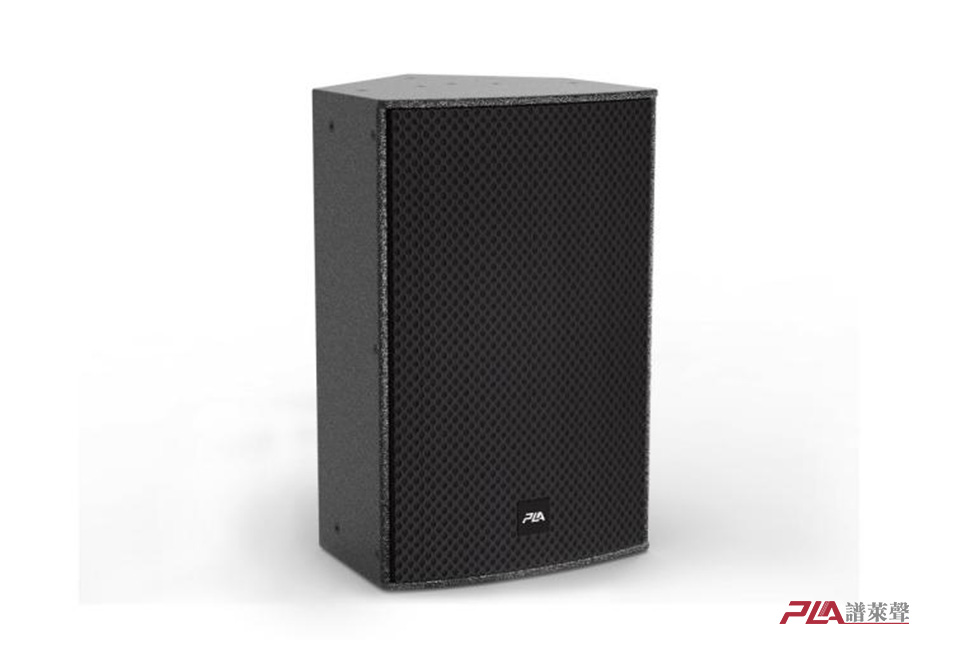

    PS10P



    ApplicationsFeature
    Small FOH

    Rotatable 80 x 50°directivity horn

    Preamplifier circuit technology

    Phase Coherent Technology

    MLC(Microphones&Line Combined Input)

    D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

    Elastic bass

    FCT(Full frequency Coherent Technology)

    Selfpowered full range speaker

    Long throw rubber edge LF driver

    Stage Monitor
    Near-Field Sound






    TransducersNominal directivityMaximum SPL

    Technical parameters

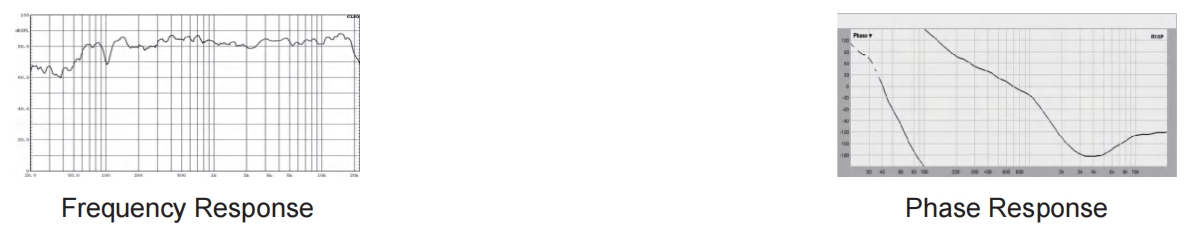

    Frequency response55Hz~ 18 kHz (±3dB ) ；50Hz ~ 20 kHz(-10dB )

    LF:1x10" All Condition Woofer

    HF:1x1.75" Phase Correction



    80°(H)x50°(V)Constant Directivity

    118 dB/128dB SPL peak

    Power Rating 2000W
    SNR

    ≥95dB


    Input connectors XLR Female Input
    Impedance20kΩBalanced/10kΩUnbalanced
    Output electric circuitClass D circult





    MaterialFinishGrilleGrille

    Physical data

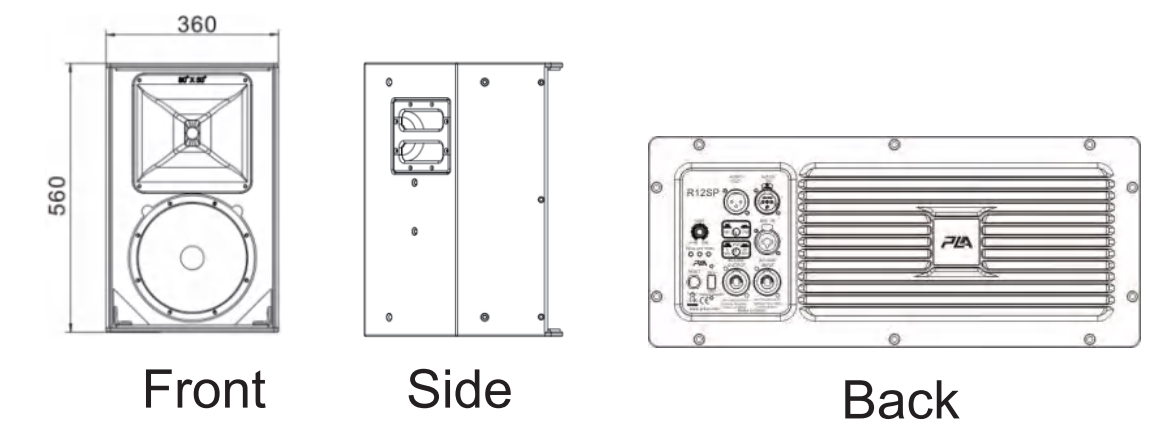

    Dimensions360x410x560mm
    Weight24Kg
    Imported multi-plywood Environmental waterproof and anti corrosion coatings
    Black Polyurea paintings

    Black epoxy mesh grille with acoustically reticulated clot
    DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
